The Voswitch JK100 8 Switch Programmable Control System is specifically designed for the Jeep Wrangler JK/JKU. This system allows you to easily control various aspects of your vehicle with just a simple push of a button. It includes eight programmable switches that can be custom-configured to suit your individual needs. The design integrates seamlessly with the vehicle's aesthetic, offering an OE-style factory look for a professional appearance.

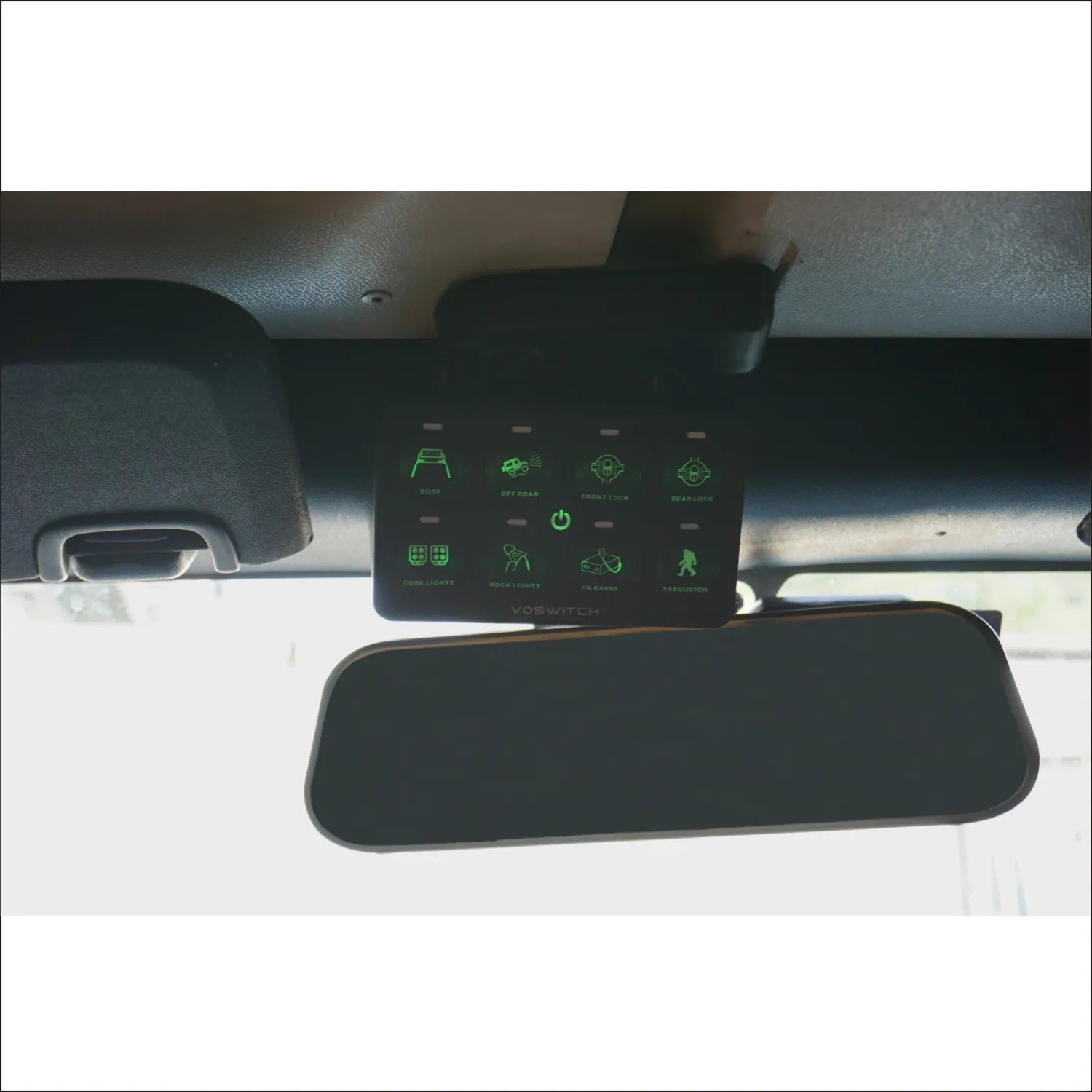

This switch panel is custom-built to install on your Jeep JK's overhead console. The installation process is designed to simplify your wiring, leading to a cleaner and more efficient setup. The eight auxiliary rocker switches included can control a wide array of accessories, providing you with versatility and convenience.

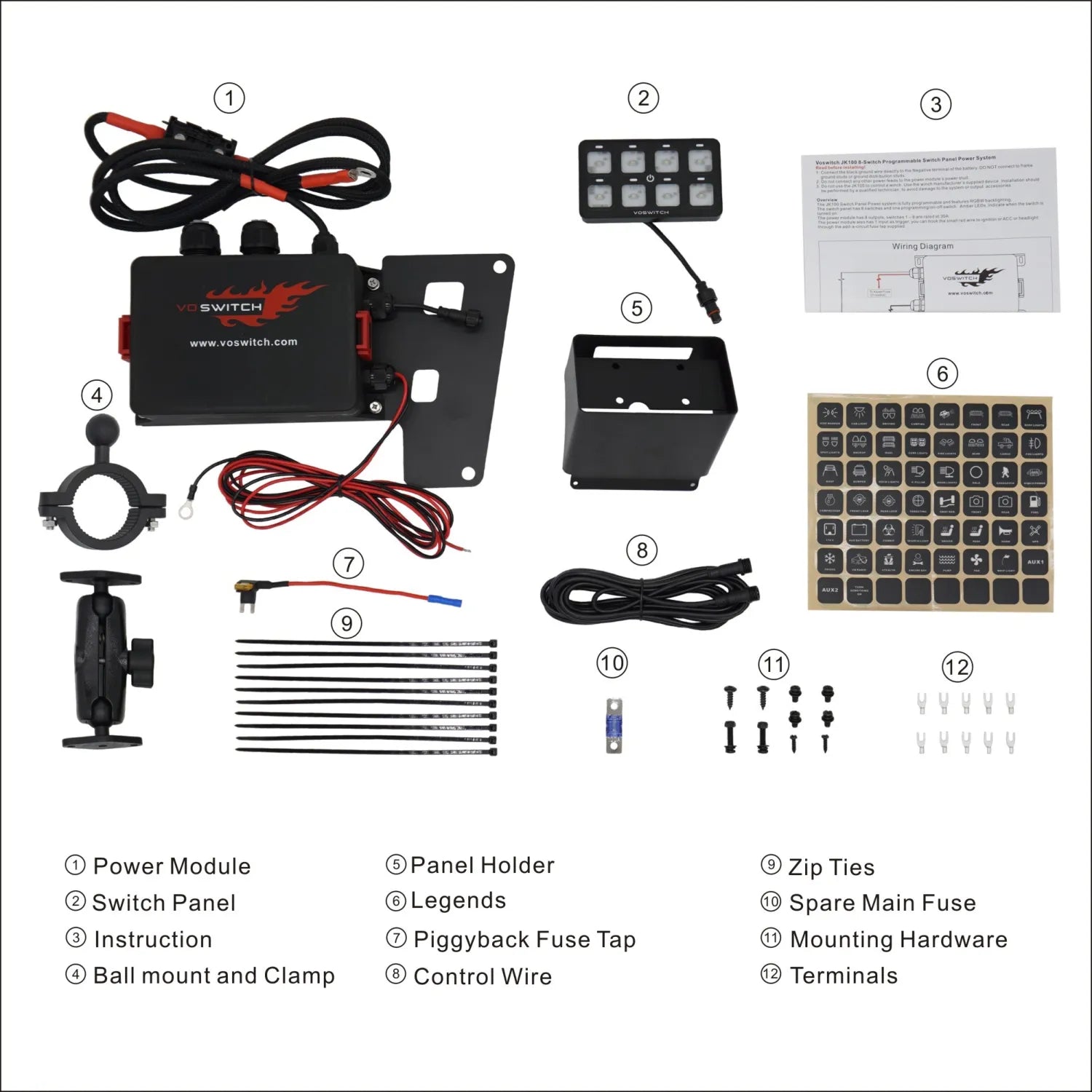

The system includes one touch switch along with eight rocker switches. A single touch on the master switch can turn on or off the entire unit. For added functionality, a long touch on the master switch allows you to dim the brightness of the backlight. The unit comes with 8-gauge power leads, crimped and soldered, for connection to the battery, ensuring a secure and stable power supply.
Please note that this switch system is specifically designed to fit Jeep Wrangler JK models from 2007-2018. Any customization to fit other vehicles would need to be performed separately
Specifications
- Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.0VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on.
- Diodes to protect sensitive accessories such as LED lights from "field collapse"

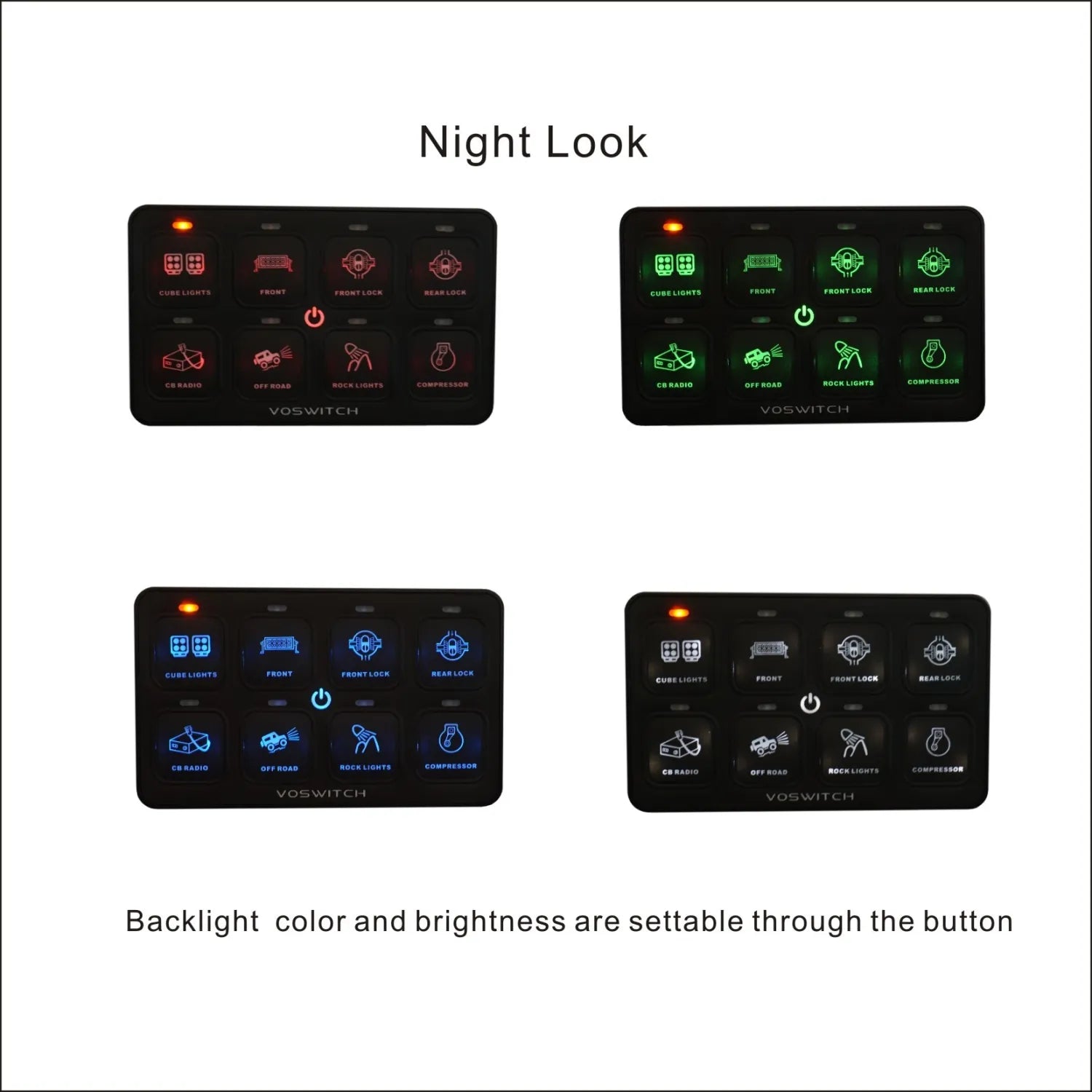

- One touch switch and eight rocker switches,one touch on master switch to turn on/off the whole unit,long touch to dim the brightness of the backlight
- 8 gauge power leads with crimped and soldered terminal for connection to the battery
- Plug and Play
